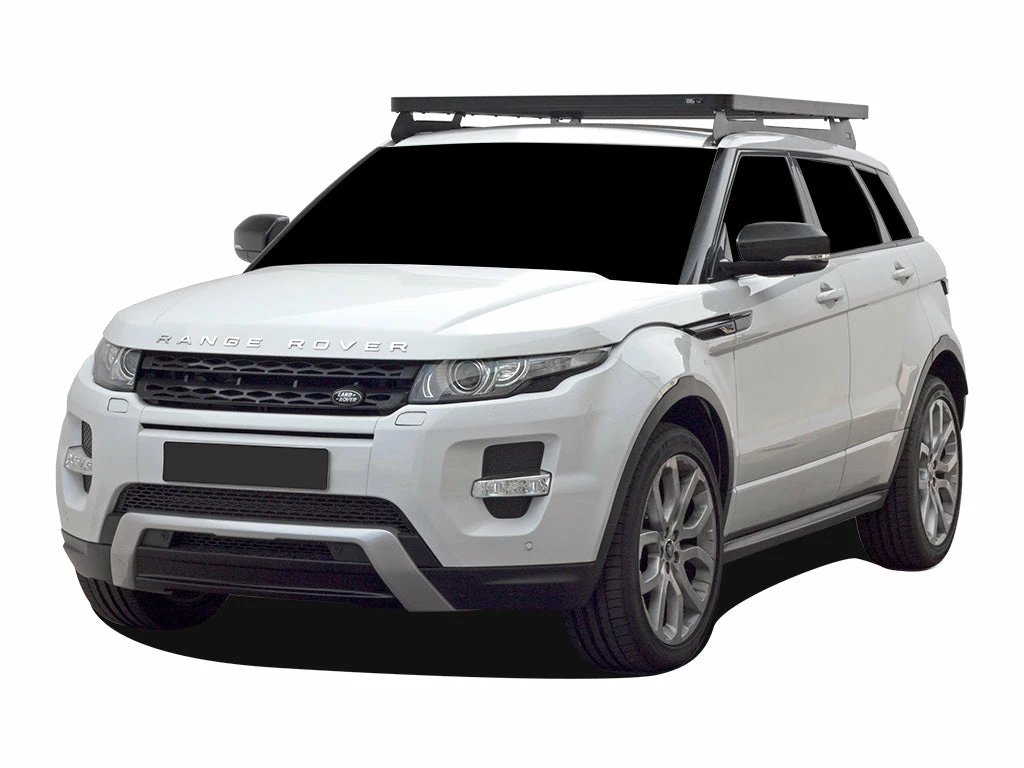

Land Rover Range Rover Evoque Roof Rack (Full Cargo Rack Foot Rail Mount) – Front Runner Slimline II Evoque 2012-2018

This vehicle specific Front Runner Slimline II full Roof Rack kit includes the Slimline II tray (1255mm x 1560mm), (2) Foot Rails with table openings and a Wind Deflector.

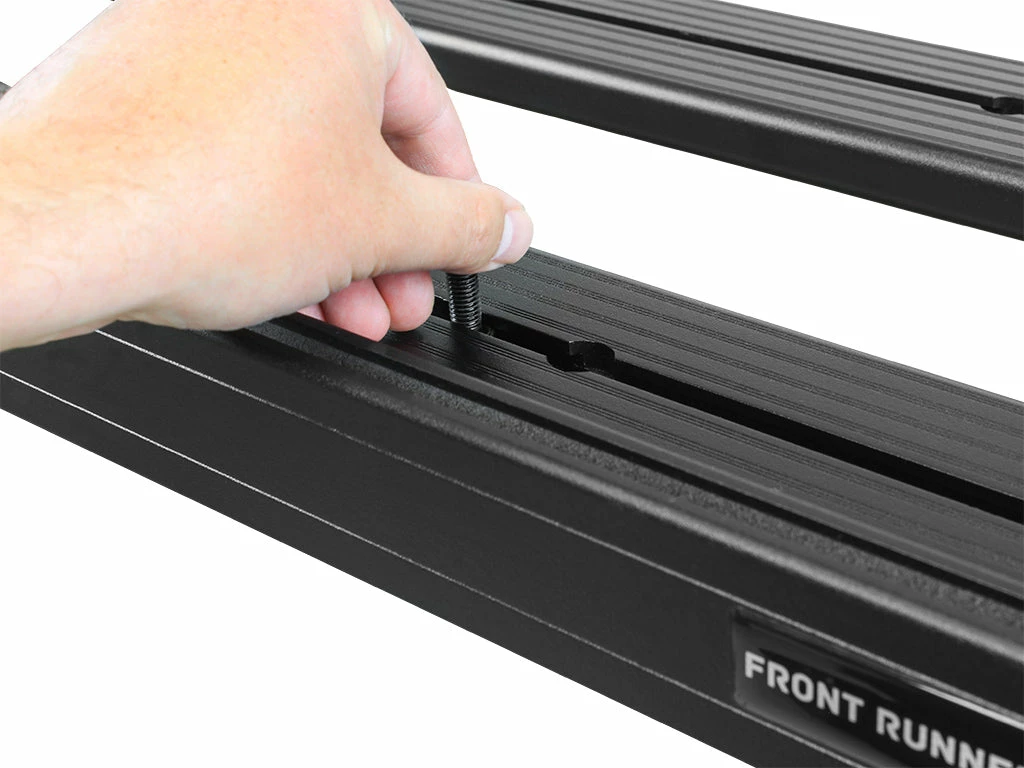

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot or Grab-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2″) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Consisting of:
1 x Range Rover Evoque Foot Rail 91mm
1 x Fitting Instruction – Kit Vehicle Specific

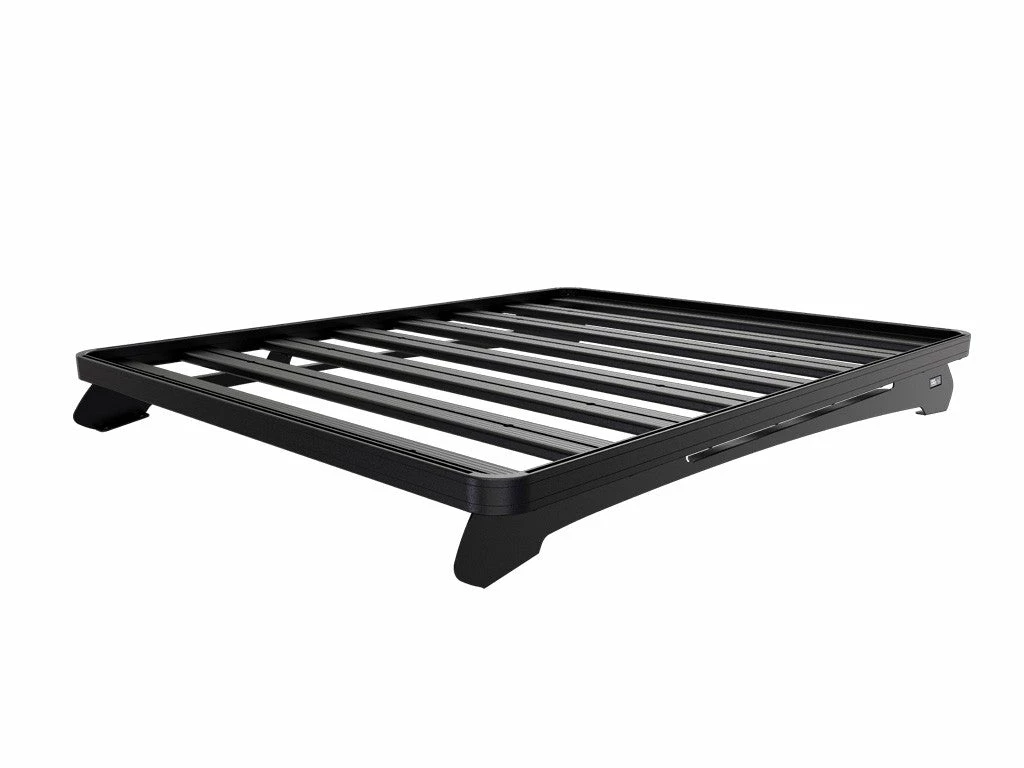

1 x Slimline II Tray – 1255mm(W) x 1560mm(L) x 50mm(H)
Material used:

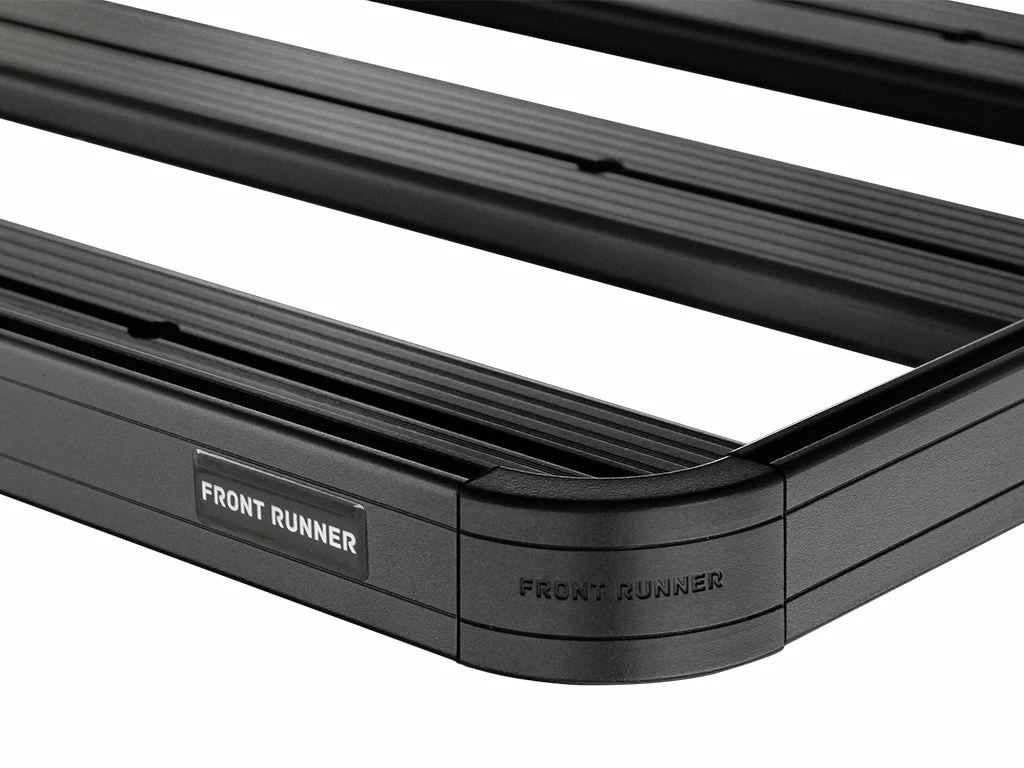

Black epoxy powder-coated T6 aluminium
Hochfester Stahl
Approximate Installed Weight:
27kg (59lbs)
Shipping Dimensions:
Width 450mm (18″)
Length 1615mm (64″)
Height 140mm (6″)
Shipping Weight:
31.3kg (68.8lbs)
